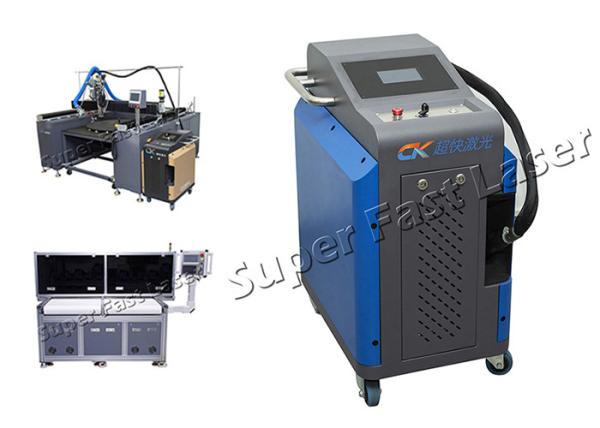

1064nm Oxide Removal Laser Metal Cleaning Machine Environmental Protection
The laser cleaning machine is easy to clean rust, paint and oil . Easy to operate, turn on the power, run the device, then you can begin no chemical reagents, no contact, no media, dust-free, anhydrous cleaning, auto focus, fit surface cleaning, cleaning the surface cleanliness advantages, to clear the surface resin, Oil, dirt, dirt, rust, coating, coating, paint.
1, Product Parameter
| Item | L/N | Characteristics | Test Conditions | Min. | Typical | Max. | Unit |
| Electrical Characteristics | 1 | Power Voltage | 220 | 210 | 220 | 230 | AC |
| 2 | Maximum current loss | Pout=Pnom | 4 | 5 | 6 | A |
| 3 | Total Power | 600 | 590 | 600 | 610 | W |
| 4 | Fiber Cable | 5 | 5 | 5 | 10 | M |
| General Characteristics | 1 | Working temperature range | 0 | / | 60 | ℃ |
| 2 | Storage temperature | -10 | / | 60 | ℃ |
| 3 | Laser power | 100 | W |
| 4 | Peak power | >10KW | KW |
| 5 | Cooling method | Air Cooling | |
| 6 | Laser level | 4 Class | |
| 7 | Pulse energy | 1.5mJ | mJ |
| 8 | Laser wavelength | 1064 | nm |
| 9 | Preheat time | Reach to start operation | 0 | s |
| Achieve complete stability | 10 |
| 10 | Humidity | 10 | / | 95 | % |
| 11 | Laser machine size | L647*W440*H859 | mm |
| 12 | Weight | 70 | kg |
We are recruiting distributors, welcome to contact us to discuss the details!
2, Product Application
| 1. Metal or glass surface coating removal, rapid paint removal; |
| 2. Grease, resin, gum, dust, stains, and produce residue removal; |
| 3. Cultural relics cleaning, rock cleaning, exterior cleaning of buildings. |
| 4. Treatment before welding, bonding, remove paint, rust, grease, weld oxide or residue; |
| 5. Roughening of metal surface; |
| 6. Mold cleaning, such as tire mold, electronic mold, food mold and etc.; |
| 7. Aerospace weapons, ship manufacture or maintenance, paint and rust removal; |
| 8. Quick rust and various oxides removal; |
| 9. Treatment for precision parts, oil removal; |
| 10. Metal surface cleaning in narrow space; |
| 11. Quick cleaning of nuclear power unit maintenance; |
3, Product Advantages
| 1, High-tech laser cleaning without any contact, no damage to the workpiece. |
| 2, Portable with light cabinet and universal wheels. |
| 3, High cleaning efficiency, time-saving. |
| 4, Auto-focusing, hook cleaning, precision, and no dead ends cleaning ability. |
| 5, No consumables and cost-effective. |
| 6, Automatic and easy operation, with electricity handheld or automation cleaning. |
| 7, No cleaning medium, water, and a chemical is needed. |
| 8, System stable, free maintenance. |
After-sales Service
1) 2 years quality warranty.
2) Lifetime maintenance free of charge.
3) Free training course for any application.
4) 24 hours of online service, free technical support.
5) The machine has been strictly tested and inspected before delivery.
6) Door to door technical services(We have professional engineers to offer machine installation
7)We can change a new machine if there is quality problem that is not easy to be solved.
